Understanding JNBK Product Numbers

Find out how to read JNBK part numbers for disc brake pads, brake shoes, brake linings, and brake disc rotors. Each part number has variations and digits to represent the automotive make application.

Disc Brake Pads

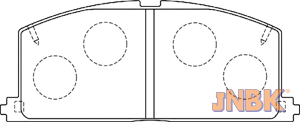

JNBK part numbers beginning with "P" are disc brake pads.

<EXAMPLE>

PN   1077
#### (×4 Digits) or ##### (×5 Digits)
Variations:
PN, PK, PL, PM, PS, PT
※up to year 2013 JNBK Brake Pad Product Numbers are within range 0001 to 9999 and 00001 to 99999

※The first digit is the number to application.

JNBK PN1077
Number to Application
Begins with: Begins with:
1 ➜ TOYOTA 7 ➜ SUBARU
2 ➜ NISSAN 8 ➜ HONDA
3 ➜ MITSUBISHI 9 ➜ SUZUKI
4 ➜ ISUZU 11 ➜ KOREA
5 ➜ MAZDA 0 ➜ EUROPE, USA,
6 ➜ DAIHATSU ➜ OTHERS

Brake Shoes

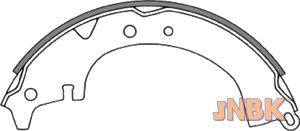

JNBK part numbers beginning with "F" are brake shoes.

<EXAMPLE>

FN   2232
#### (×4 Digits) or ##### (×5 Digits)
Variations:
FN, FK, FL
※up to year 2013 JNBK Brake Shoe Product Numbers are within range 0001 to 9999 and 11001 to 11999

※The first digit and first two digits (only for KOREA applications) are the numbers to application.

JNBK FN2232
Number to Application
Begins with: Begins with:
1 ➜ NISSAN 7 ➜ SUBARU
2 ➜ TOYOTA 8 ➜ ----------
3 ➜ MAZDA 9 ➜ SUZUKI
4 ➜ ISUZU 00 ➜ DAIHATSU
5 ➜ HONDA 05 ➜ EUROPE, USA,
6 ➜ MITSUBISHI ➜ OTHERS
11 ➜ KOREA

Brake Linings

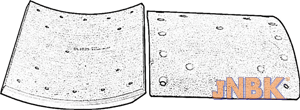

JNBK part numbers beginning with "BL" are brake linings.

<EXAMPLE>

BL   1035
#### (×4 Digits) or ##### (×5 Digits)
Variations:
BL
※up to year 2013 JNBK Brake Lining Product Numbers are within range 0001 to 9999
JNBK BL1035

Brake Disc Rotors

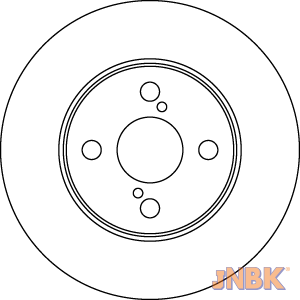

JNBK part numbers beginning with "R" are brake disc rotors.

<EXAMPLE>

RT   17143
##### (×5 Digits)
Variations:
RT, RM
※up to year 2013 JNBK Brake Pad Product Numbers are within range 00001 to 99999

※The first digit is the number to application.

JNBK RT17143
Number to Application
Begins with: Begins with:
1 ➜ TOYOTA 7 ➜ SUBARU
2 ➜ NISSAN 8 ➜ HONDA
3 ➜ MITSUBISHI 9 ➜ SUZUKI
4 ➜ ISUZU 0 ➜ KOREA,
5 ➜ MAZDA ➜ EUROPE, USA,
6 ➜ DAIHATSU ➜ OTHERS

All our effort put to obtain all information is made correctly.
However, we cannot be responsible for errors that inadvertently made.
